Height curve of natural Larix gmelinii in the Daxing’anling Mountains of northeastern China based on forest classification
-
摘要:
目的 基于林木分级构建大兴安岭地区兴安落叶松的树高曲线模型，为该地区兴安落叶松的生长规律提供理论依据及森林可持续经营提供技术支撑。 方法 以大兴安岭地区翠岗林场56块固定样地数据为基础，根据单木相对直径（d）把林木分为了优势木、平均木、被压木3个等级，依据调整决定系数（R2 adj）最大、均方根误差（RMSE）和赤池信息量（AIC）最小的标准筛选出天然兴安落叶松各等级林木的最优树高曲线基础模型，并进一步评价和比较分位数回归和哑变量回归对兴安落叶松不同等级林木树高曲线模型模拟精度的影响。 结果 天然兴安落叶松树高曲线的最优基础模型均为Wykoff方程；当将林分分级哑变量同时添加在Wykoff方程的参数a和b上时，模型的拟合效果最好,其中兴安落叶松树高曲线模型的调整系数（R2 adj）、均方根误差（RMSE）和赤池信息量（AIC）分别为0.858 8、1.642 4和2 081.902；兴安落叶松中的不同等级林木对应的最优分位数模型与林分整体无差别，均表现为中位数模型最优（即τ = 0.5），其树高曲线的3个统计量则依次为0.849 8、1.693 8和2 211.037。经过比较分析可知，以林木分级为哑变量的树高曲线模型拟合效果最好。 结论 含林木分级哑变量的大兴安岭兴安落叶松的树高曲线模型拟合效果优于基础模型，并且具有较好的预测精度和适应性，能反映不同林木等级下的树高、胸径的生长差异，可以为大兴安岭地区兴安落叶松的经营和生长预估提供理论依据。 Abstract:Objective The tree height curve of main tree species was established based on tree classification, which provided reference for studying the growth law of Larix gmelinii, and provided technical support for forest sustainable management in Daxing’anling Mountains of northeastern China. Method Based on the data of 56 fixed sample plots in Cuigang Forest farm of Daxing’anling Mountains, trees were divided into three grades of dominant, average and crushed trees according to the relative diameter (d) of individual trees. Based on the maximum adjusted coefficient (R2 adj), minimum root mean square error (RMSE) and the minimum red pool information (AIC), the optimal tree height curve basic model of different grades of natural Larix gmelinii was screened out, and the effects of quantile regression and dummy variable regression on the simulation accuracy of tree height curve models of different grades of Larix gmelinii were further evaluated and compared. Result The optimal basic model of Larix gmelinii height curves was Wykoff equation. When the dumb variables of stand classification were added to parameters a and b of Wykoff equation, the model had the best fitting effect. R2 adj, RMSE and AIC of Larix gmelinii tree species curve model were 0.858 8, 1.642 4 and 2 081.902, respectively. There was no difference between the optimal quantile model and the whole stand of Larix gmelinii, and the median model was optimal (τ = 0.5). The three statistics of height curve of the deciduous pine were 0.849 8, 1.693 8 and 2 211.037, respectively. Through comparative analysis, the tree height curve model with tree classification as dummy variable had the best fitting effect. Conclusion The height curve model of Larix gmelinii in the Daxing’anling Mountains, which contains dummy variables for tree classification, has better fitting performance than the basic model, and has good prediction accuracy and adaptability. It can reflect the growth differences of tree height and DBH under different tree grades, and can provide a theoretical basis for the management and growth prediction of Larix gmelinii in the Daxing’anling Mountains region. -
Key words:
- tree classification /
- quantile regression /
- dummy variable /
- tree height curve
-
图 1 不同林木等级的兴安落叶松残差分布
Figure 1. Residual distribution of Larix gmelinii under different tree grades
图 2 不同分位数兴安落叶松树高−胸径曲线模拟
Figure 2. Tree height-DBH curve simulation of Larix gmelinii based on base model, median model and different quantile groups

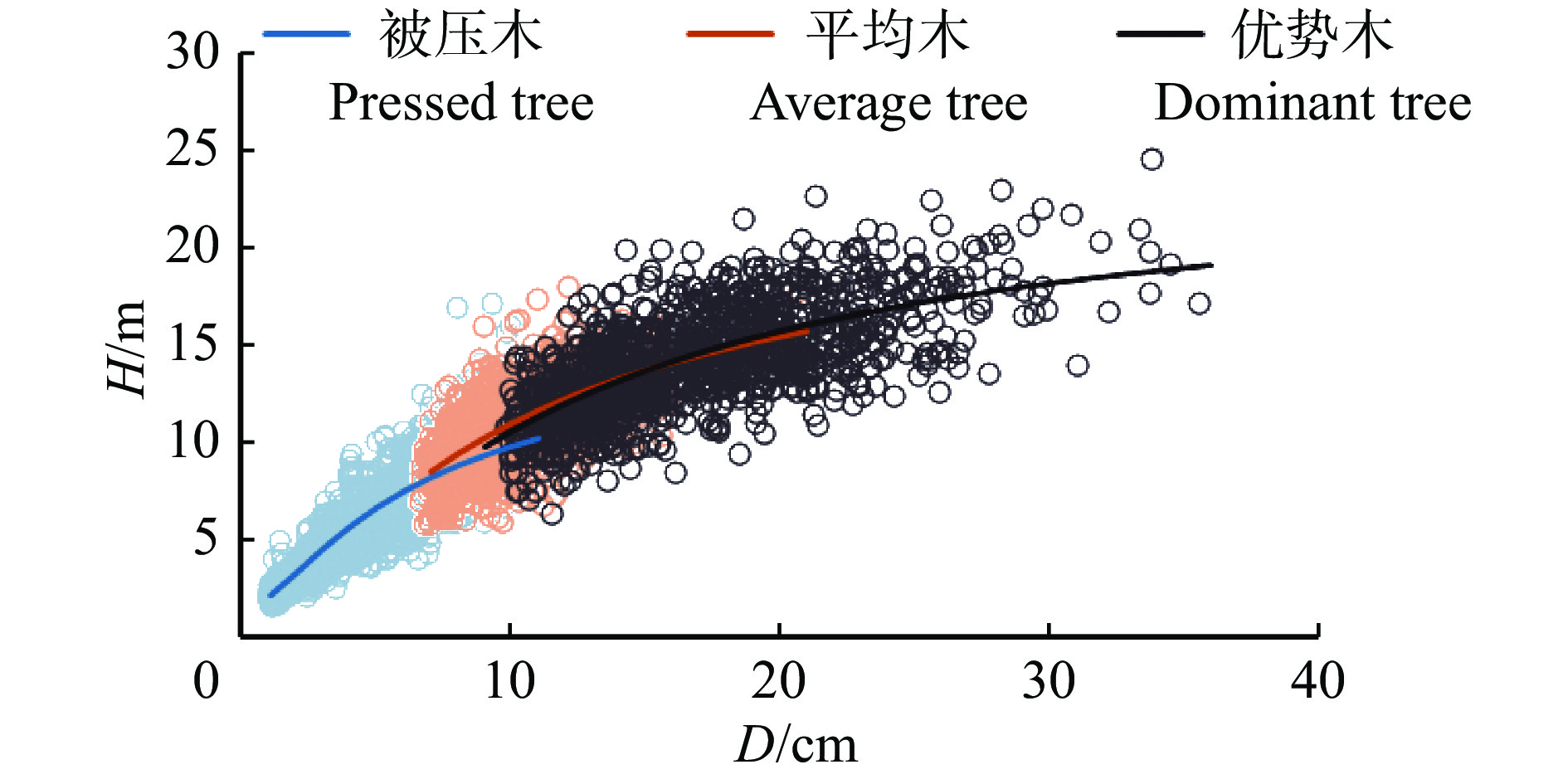

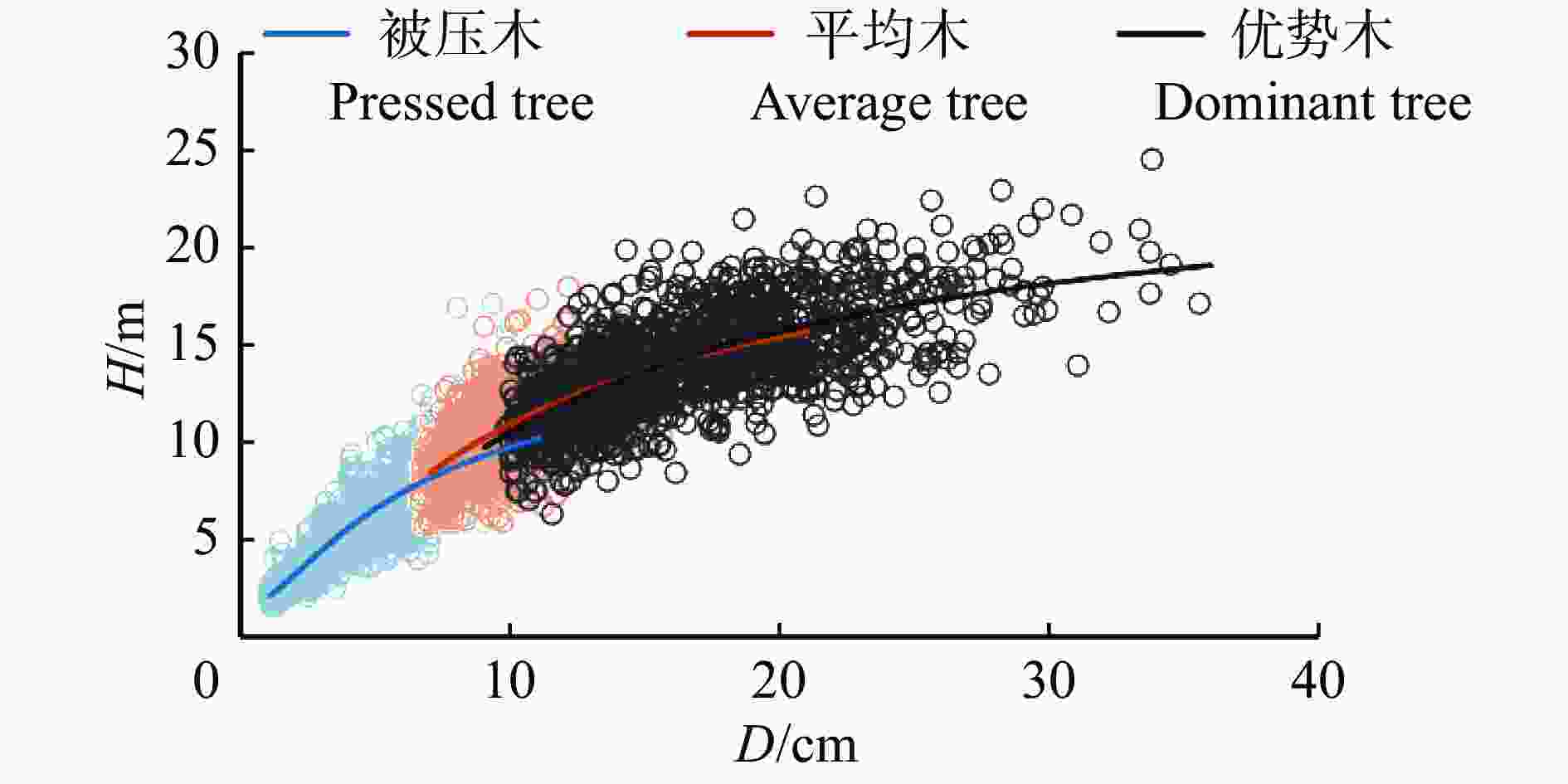

图 3 基于林木分级的哑变量模型模拟曲线
Figure 3. Dummy variable model simulation curve based on forest classification
表 1 样地基本特征
Table 1. Basic characteristics of the sample plots
落叶松蓄积占比
Percentage of larch volume样地数量
Number of sample plot变量
Variable最小值
Min. value最大值
Max. value平均值
Mean标准差
SD变异系数
CV/%70%以上
More than 70%29 胸径 Diameter at breast height (D)/cm 9.9 20.5 12.9 2.3 18.1 树高Tree height (H)/m 9.5 16.3 11.8 1.6 13.3 林分密度/（株·hm−2）
Stand density/(tree·ha−1)533.0 2 217.0 1 405.6 442.1 31.5 50% ~ 70% 17 D/cm 9.7 15.9 12.2 1.6 13.5 H/m 10.0 15.3 11.9 1.5 12.3 林分密度/（株·hm−2）
Stand density/(tree·ha−1)850.0 2 333.0 1 312.6 330.4 25.2 50%以下
Less than 50%10 D/cm 9.9 12.7 11.5 0.9 7.5 H/m 11.0 14.2 12.0 1.0 8.2 林分密度/（株·hm−2）
Stand density/(tree·ha−1)800.0 2 090.0 1 373.3 353.8 25.8
下载: 导出CSV
表 2 天然兴安落叶松不同等级林木的样本统计量
Table 2. Sample statistics of different grades of natural Larix gmelinii
林木分级
Tree classification分组
Group样本数
Number of sample plotDBH/cm 树高 Tree height/m 最小值
Min. value平均值
Mean最大值
Max. value最小值
Min. value平均值
Mean最大值
Max. value优势木 Dominant tree 建模数据 Modeling data 726 9.8 16.9 35.5 6.4 14.1 24.6 检验数据 Validation data 311 9.7 16.8 33.1 6.8 14.2 22.3 平均木 Average tree 建模数据 Modeling data 485 6.6 9.8 20.7 5.8 10.6 18.0 检验数据 Validation data 208 6.7 9.6 15.8 6.1 10.6 18.2 被压木 Pressed tree 建模数据 Modeling data 863 1.0 4.7 10.8 1.5 6.0 17.2 检验数据 Validation data 370 1.0 4.7 15.8 1.4 6.1 15.0
下载: 导出CSV
表 3 候选立木树高−胸径曲线模型
Table 3. Model of tree height-DBH curves for candidate standing trees
序号 No. 模型 Model 表达式 Expression 1 Wykoff $ {{H}} = 1.3 + {{\rm{e}}^{\left( {{{a}} + \frac{{{b}}}{{{{D}} + 1}}} \right)}} $ 2 Richards ${{H}} = 1.3 + {{a}}{\left( {1 - {{\rm{e}}^{ - {{cD}}}}} \right)^{{b}}}$ 3 Weibull ${{H}} = 1.3 + {{a}}\left( {1 - {{\rm{e}}^{ - {{b}}{{{D}}^{{C}}}}}} \right) $ 4 Korf $ {{H}} = 1.3 + {{a}}{{\rm{e}}^{ - {{b}}{{{D}}^{-{{c}}}}}}$ 5 Logistic ${{H}} = 1.3 + {{a}}/\left( {1 + {{b}}{{\rm{e}}^{ - {{cD}}}}} \right)$ 注：a、b、c为模型参数。Notes: a, b and c are model parameters.
下载: 导出CSV
表 4 天然兴安落叶松不同林木分级区间树高曲线模型的拟合
Table 4. Fitting of tree height curve models for different tree grading intervals of natural Larix gmelinii
等级
Grade模型
Model参数 Parameter 拟合精度 Fitting accuracy a b c R2 adj RMSE AIC 优势木
Dominant treeWykoff 3.203 4 −11.432 4 0.486 1 2.020 4 1 024.201 Richards 19.957 7 0.069 4 1.166 4 0.484 8 2.021 5 1 027.003 Weibull 19.937 5 0.049 0 1.083 5 0.484 7 2.021 6 1 027.044 Korf 26.811 2 7.568 0 0.829 5 0.485 6 2.020 0 1 025.915 Logistic 18.276 9 3.632 2 0.128 5 0.482 7 2.025 7 1 030.001 平均木
Average treeWykoff 3.073 8 −9.161 6 0.379 8 1.707 9 522.206 Richards 14.567 3 0.158 9 1.906 8 0.378 6 1.707 8 524.166 Weibull 14.088 9 0.041 5 1.425 1 0.378 4 1.708 1 524.341 Korf 18.948 2 8.673 7 1.094 8 0.379 0 1.707 3 523.881 Logistic 13.450 8 6.193 4 0.267 3 0.378 0 1.708 7 524.673 被压木
Pressed treeWykoff 2.717 8 −6.431 7 0.761 2 1.232 1 363.302 Richards 19.397 0 0.075 6 1.178 4 0.769 8 1.209 1 332.720 Weibull 17.919 5 0.051 1 1.148 2 0.769 8 1.209 1 332.754 Korf 8.406 0* 6.917 0 1.856 0 0.769 9 1.208 7 332.159 Logistic 9.299 3 10.021 2 0.485 7 0.762 4 1.228 4 360.010 注：*表示在显著性水平为0.05下渐进t检验不显著。Notes: * indicates that the asymptotic for the parameter is not significant at the 0.05 level.
下载: 导出CSV
表 5 不同参数组合哑变量树高−胸径模型拟合优度与评价指标
Table 5. Goodness of fit and evaluation index of dummy variable model with different parameter combinations
参数 Parameter R2 adj RMSE AIC a 0.848 8 1.699 7 2 225.612 a、b 0.858 8 1.642 4 2 081.902
下载: 导出CSV
表 6 哑变量添加在a、b上的参数
Table 6. Parameters of dummy variable added to a and b
参数
Parametera0 a1 a2 b0 b1 b2 估计值
Estimated value2.689 9 0.490 5 0.410 3 −6.328 8 −4.772 9 −3.157 3
下载: 导出CSV
表 7 分位数回归模型的参数估计
Table 7. Parameter estimation of quantile regression model
分位数
Quantile (τ)a b R2 adj RMSE AIC 0.1 2.906 7 −10.193 5 0.615 4 2.673 3 4 123.071 0.3 2.967 1 −9.020 3 0.810 0 1.905 2 2 703.786 0.5 3.008 2 −8.401 5 0.849 8 1.693 8 2 211.037 0.7 3.068 2 −7.982 1 0.814 9 1.880 5 2 649.209 0.9 3.150 5 −7.373 0 0.583 3 2.821 1 4 348.549
下载: 导出CSV
表 8 分位数回归模型的拟合与评价
Table 8. Fitting and evaluation of quantile regression model
等级
Grade分位数
Quantile (τ)拟合精度 Fitting accuracy R2 adj RMSE AIC 优势木
Dominant tree0.1 −0.448 8 3.392 4 1 776.681 0.3 0.238 1 2.460 2 1 310.143 0.5 0.430 0 2.127 8 1 099.402 0.7 0.386 1 2.208 4 1 153.350 0.9 −0.279 4 3.188 0 1 686.427 平均木
Average tree0.1 −0.624 8 2.764 4 989.327 0.3 0.220 8 1.914 4 632.898 0.5 0.377 5 1.711 1 524.047 0.7 0.170 2 1.975 5 663.402 0.9 −0.979 2 3.051 1 1 085.027 被压木
Pressed tree0.1 0.383 2 1.980 2 1 182.192 0.3 0.687 9 1.408 5 594.248 0.5 0.744 9 1.273 4 420.189 0.7 0.668 9 1.450 8 645.321 0.9 0.249 2 2.184 8 1 351.874 注：粗体表示兴安落叶松林木等级模型统计量的最优值。下同。Notes: bold font indicates the optimal value of the model statistics of Larix gmelinii. The same below.
下载: 导出CSV
表 9 兴安落叶松不同方法的树高−胸径模型独立性检验
Table 9. Validation statistics for tree height-DBH models of Larix gmelinii based on different methods
等级
Grade模型
ModelMAE MAPE 优势木
Dominant tree分位数模型
Quantile regression1.550 7 11.304 1 哑变量模型
Dummy variable model1.522 9 11.258 4 基础模型
Basic model1.561 4 11.400 5 平均木
Average tree分位数模型
Quantile regression1.461 8 13.778 2 哑变量模型
Dummy variable model1.383 4 14.126 9 基础模型
Basic model1.404 1 14.588 5 被压木
Pressed tree分位数模型
Quantile regression1.137 7 20.336 1 哑变量模型
Dummy variable model0.800 2 13.578 2 基础模型
Basic model0.907 9 16.265 0
下载: 导出CSV
-
[1] Misik T, Antal K, Kárász I, et al. Nonlinear height-diameter models for three woody, understory species in a temperate oak forest in Hungary[J]. Canadian Journal of Forest Research, 2016, 46(11): 1337−1342. doi: 10.1139/cjfr-2015-0511 [2] 赵俊卉, 亢新刚, 刘燕. 长白山主要针叶树种最优树高曲线研究[J]. 北京林业大学学报, 2009, 31(4): 13−18. doi: 10.3321/j.issn:1000-1522.2009.04.003Zhao J H, Kang X G, Liu Y. Optimal height-diameter models for dominant coniferous species in Changbai Mountain, northeastern China[J]. Journal of Beijing Forestry University, 2009, 31(4): 13−18. doi: 10.3321/j.issn:1000-1522.2009.04.003 [3] Luo R C, Lai C C. Multisensor fusion-based concurrent environment mapping and moving object detection for intelligent service robotics[J]. IEEE Transactions on Industrial Electronics, 2014, 61(8): 4043−4051. [4] 王冬至, 张冬燕, 王方, 等. 塞罕坝主要立地类型针阔混交林树高曲线构建[J]. 北京林业大学学报, 2016, 38(10): 7−14. doi: 10.13332/j.1000-1522.20150359Wang D Z, Zhang D Y, Wang F, et al. Height curve construction of needle and broadleaved mixed forest under main site types in Saihanba, Hebei of northern China[J]. Journal of Beijing Forestry University, 2016, 38(10): 7−14. doi: 10.13332/j.1000-1522.20150359 [5] 王冬至, 张冬燕, 张志东, 等. 基于非线性混合模型的针阔混交林树高与胸径关系[J]. 林业科学, 2016, 52(1): 30−36.Wang D Z, Zhang D Y, Zhang Z D, et al. Height-diameter relationship for conifer mixed forest based on nonlinear mixed-effects model[J]. Scientia Silvae Sinicae, 2016, 52(1): 30−36. [6] 樊伟, 许崇华, 崔珺, 等. 基于混合效应的大别山地区杉木树高−胸径模型比较[J]. 应用生态学报, 2017, 28(9): 2831−2839.Fan W, Xu C H, Cui J, et al. Comparisons of height-diameter models of Chinese fir based on mixed effect in Dabie Mountain area, China[J]. Chinese Journal of Applied Ecology, 2017, 28(9): 2831−2839. [7] 曾翀, 雷相东, 刘宪钊, 等. 落叶松云冷杉林单木树高曲线的研究[J]. 林业科学研究, 2009, 22(2): 182−189. doi: 10.3321/j.issn:1001-1498.2009.02.006Zeng C, Lei X D, Liu X Z, et al. Individual tree height-diameter curves of larch-spruce-fir forests[J]. Forest Research, 2009, 22(2): 182−189. doi: 10.3321/j.issn:1001-1498.2009.02.006 [8] 王君杰, 夏宛琦, 姜立春. 基于分位数回归和哑变量模型的大兴安岭兴安落叶松树高−胸径模型[J]. 中南林业科技大学学报, 2020, 40(9): 24−32, 40.Wang J J, Xia W Q, Jiang L C. Height-diameter models for Larix gmelinii in Daxing’anling based on quantile regression and dummy variable model[J]. Journal of Central South University of Forestry & Technology, 2020, 40(9): 24−32, 40. [9] 张剑坛, 李彦朋, 张入匀, 等. 基于枝条木材密度分级的鼎湖山南亚热带常绿阔叶林树高曲线模型[J]. 生物多样性, 2021, 29(3): 456−466. doi: 10.17520/biods.2020369Zhang J T, Li Y P, Zhang R Y, et al. Height-diameter models based on branch wood density classification for the south subtropical evergreen broad-leaved forest of Dinghushan[J]. Biodiversity Science, 2021, 29(3): 456−466. doi: 10.17520/biods.2020369 [10] 沈国舫, 翟明普. 森林培育学[M]. 北京: 中国林业出版社, 2011.Shen G F, Zhai M P. Silvicuture[M]. Beijing: China Forestry Publishing House, 2011. [11] Hegyi F. Growth models for tree and stand simulation[J]. Forestry Science, 1974, 26(3): 659−720. [12] Bohoras B, Cao Q V. Prediction of tree diameter growth using quantile regression and mixed-effects models[J]. Forest Ecology and Management, 2014, 319(5): 62−66. [13] Cao Q V, Wang J. Evaluation of methods for calibrating a tree taper equation[J]. Forest Science, 2015, 61(2): 213−219. doi: 10.5849/forsci.14-008 [14] Özçelik R, Cao Q V, Trincado G, et al. Predicting tree height from tree diameter and dominant height using mixed-effects and quantile regression models for two species in Turkey[J]. Forest Ecology and Management, 2018, 419: 240−248. [15] Zang H, Lei X, Zeng W. Height-diameter equations for larch plantations in northern and northeastern China: a comparison of the mixed-effects, quantile regression and generalized additive models[J]. Forestry, 2016, 89(4): 434−445. doi: 10.1093/forestry/cpw022 [16] 高东启, 邓华锋, 王海宾, 等. 基于哑变量的蒙古栎林分生长模型[J]. 东北林业大学学报, 2014, 21(1): 61−64. doi: 10.3969/j.issn.1000-5382.2014.01.014Gao D Q, Deng H F, Wang H B, et al. Dummy variables models in Quercus mongolica growth[J]. Journal of Northeast Forestry University, 2014, 21(1): 61−64. doi: 10.3969/j.issn.1000-5382.2014.01.014 [17] 孟宪宇. 测树学[M]. 北京: 中国林业出版社, 2011: 125−160.Meng X Y. Forest measurement [M]. Beijing: China Forestry Publishing House, 2011: 125−160. [18] 冯林, 王立明. 林木生长分级数学表述的研究[J]. 内蒙古林学院学报, 1989, 11(1): 9−16.Feng L, Wang L M. Mathematical expression on crown classification[J]. Journal of Inner Mongolia Forestry University, 1989, 11(1): 9−16. [19] 玉宝, 乌吉斯古楞, 王百田, 等. 大兴安岭兴安落叶松(Larix gmelinii)天然林分级木转换特征[J]. 生态学报, 2008, 28(11): 5750−5757. doi: 10.3321/j.issn:1000-0933.2008.11.062Yu B, Wujisiguleng, Wang B T, et al. Analysis on classified stem transformation characteristic of Larix gmelinii natural forest at Daxing’anling Mountains[J]. Acta Ecologica Sinica, 2008, 28(11): 5750−5757. doi: 10.3321/j.issn:1000-0933.2008.11.062 [20] 康永武, 罗宁, 欧建德. 造林密度对南方红豆杉人工林生长性状的影响[J]. 西南林业大学学报(自然科学), 2017, 37(3): 47−52.Kang Y W, Luo N, Ou J D. Effects of planting density on the growth traits of Taxus wallichina plantation[J]. Journal of Southwest Forestry University (Natural Science Edition), 2017, 37(3): 47−52. [21] 欧建德, 吴志庄. 峦大杉人工林树冠、根系生长和林木分级的早期密度效应[J]. 东北林业大学学报, 2018, 46(12): 15−19. doi: 10.3969/j.issn.1000-5382.2018.12.003Ou J D, Wu Z Z. Early density effect growth of grown and root, and forest classification of Cunninghamia konishii plantation[J]. Journal of Northeast Forestry University, 2018, 46(12): 15−19. doi: 10.3969/j.issn.1000-5382.2018.12.003 [22] 李海奎, 法蕾. 基于分级的全国主要树种树高−胸径模型[J]. 林业科学, 2011, 47(10): 83−90. doi: 10.11707/j.1001-7488.20111013Li H K, Fa L. Height-diameter model for major tree species in China using the classified height method[J]. Scientia Silvae Sinicae, 2011, 47(10): 83−90. doi: 10.11707/j.1001-7488.20111013 [23] 段光爽, 李学东, 冯岩, 等. 华北落叶松天然次生林树高曲线的混合效应模型[J]. 南京林业大学学报(自然科学版), 2018, 42(2): 163−169.Duan G S, Li X D, Feng Y, et al. Developing a height-diameter relationship model with mixed random effects for Larix principis-rupprechtii natural secondary forests[J]. Journal of Nanjing Forestry University (Natural Science Edition), 2018, 42(2): 163−169. [24] 朱光玉, 胡松, 符利勇. 基于哑变量的湖南栎类天然林林分断面积生长模型[J]. 南京林业大学学报(自然科学版), 2018, 42(2): 157−162.Zhu G Y, Hu S, Fu L Y. Basal area growth model for oak natural forest in Hunan Province based on dummy variable[J]. Journal of Nanjing Forestry University (Natural Science Edition), 2018, 42(2): 157−162. [25] 曹梦, 潘萍, 欧阳勋志, 等. 基于哑变量的闽楠天然次生林单木胸径和树高生长模型研究[J]. 北京林业大学学报, 2019, 41(5): 88−96. doi: 10.13332/j.1000-1522.20190026Cao M, Pan P, Ouyang X Z, et al. Growth model of DBH and tree height for individual tree of natural secondary Phoebe bournei forest based on dummy variable[J]. Journal of Beijing Forestry University, 2019, 41(5): 88−96. doi: 10.13332/j.1000-1522.20190026 [26] 臧颢, 雷相东, 张会儒, 等. 红松树高−胸径的非线性混合效应模型研究[J]. 北京林业大学学报, 2016, 38(6): 8−9.Zang H, Lei X D, Zhang H R, et al. Nonlinear mixed-effects height-diameter model of Pinus koraiensis[J]. Journal of Beijing Forestry University, 2016, 38(6): 8−9. [27] 吕飞舟. 基于CSI的蒙古栎林木竞争与分级研究[D]. 长沙: 中南林业科技大学, 2016.Lü F Z. Study on the forest competition and classification of Quercus mongolica based on CIS[D]. Changsha: Central South University of Forestry and Technology, 2016. [28] 张冬燕, 王冬至, 李晓, 等. 基于分位数回归的针阔混交林树高与胸径的关系[J]. 浙江农林大学学报, 2020, 37(3): 424−431. doi: 10.11833/j.issn.2095-0756.20190461Zhang D Y, Wang D Z, Li X, et al. Relationship between height and diameter at breast height (DBH) in mixed coniferous and broadleaved forest based on quantile regression[J]. Journal of Zhejiang A&F University, 2020, 37(3): 424−431. doi: 10.11833/j.issn.2095-0756.20190461 [29] 李杰. 基于分级的福建将乐地区栲树树高曲线模型研究[J]. 西北农林科技大学学报(自然科学版), 2019, 47(11): 34−42. doi: 10.13207/j.cnki.jnwafu.2019.11.005Li J. Classification based height-diameter model for Castanopsis fargesii in Jiangle, Fujian[J]. Journal of Northwest A&F University (Natural Science Edition), 2019, 47(11): 34−42. doi: 10.13207/j.cnki.jnwafu.2019.11.005 [30] 雷相东, 李希菲. 混交林生长模型研究进展[J]. 北京林业大学学报, 2003, 25(3): 105−110. doi: 10.3321/j.issn:1000-1522.2003.03.022Lei X D, Li X F. A review on growth models of mixed forests[J]. Journal of Beijing Forestry University, 2003, 25(3): 105−110. doi: 10.3321/j.issn:1000-1522.2003.03.022 -
